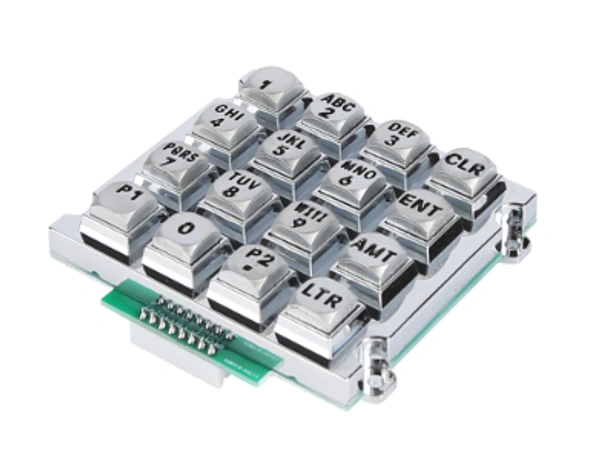

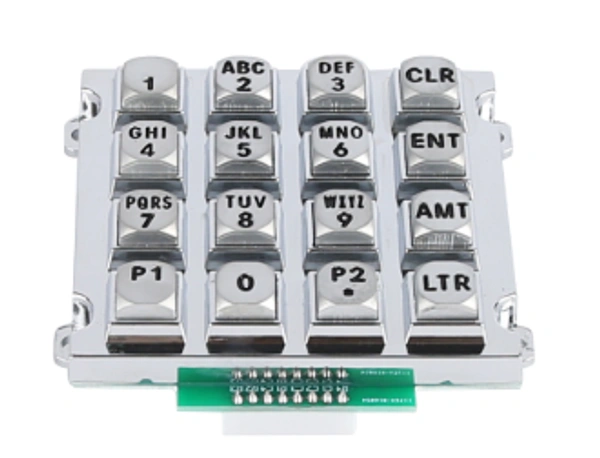

Keypad Tokheim - Kit
₹ 2,300 / Piece
₹ 3,500
34%
₹ 2,714 / Piece
Inclusive of Tax
1. 16 Keys Vandal proof IP65 znic alloy key buttons and frame, Dot matrix keypad.
2. carbon-on-gold key switch technology.

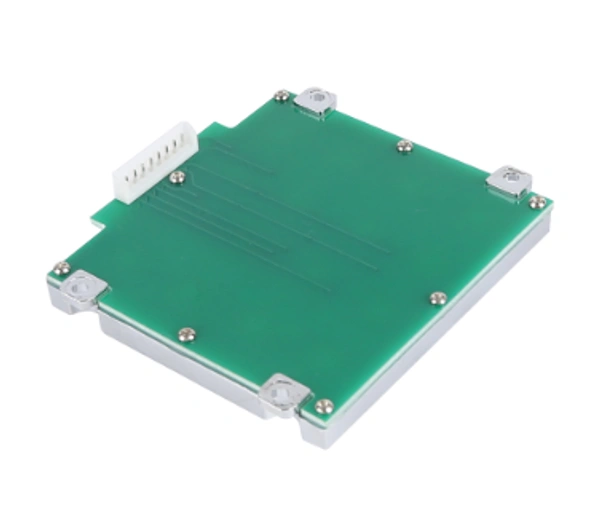

3. rear mounting
Special Features:
1. Specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
2. This keypad with willful destruction, vandal-proof, against corrosion, weather-proof especially under
extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
Specifications:
| MECHANICAL DATA | |
| keys | 16 keys |
| Switching material | carbon-on-Gold key switch technology PCB |
| Actuation Force | 0.6 N+/-0.1N (pressure point) |
| Frame/keys materials | Znic alloy |
| Dimensions | 76mm *70mm (L x W ) |
| G.W. | 180 g approx |
| Key Size | 10.0mm *10.0mm |
| rubber life | more than 800000 cycles |
| ELECTRICAL DATA | |
| Current Rating | appr. 45mA |
| Power Consumption | Under 300mW for operation, under 200mW for non-operation. |
| Contact resistance | 200 ohm (max) |
| Electrical lifetime | > 5 years |
| Interface | Male pinout connector |
| OS | All windows, Linux, Unix, Mac OSX |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +75℃ |
| Storage temperature | -35℃ to +85℃ |
| Operating RH | 30-90%RH |
| Atmospheric pressure | 60-106Kpa |
